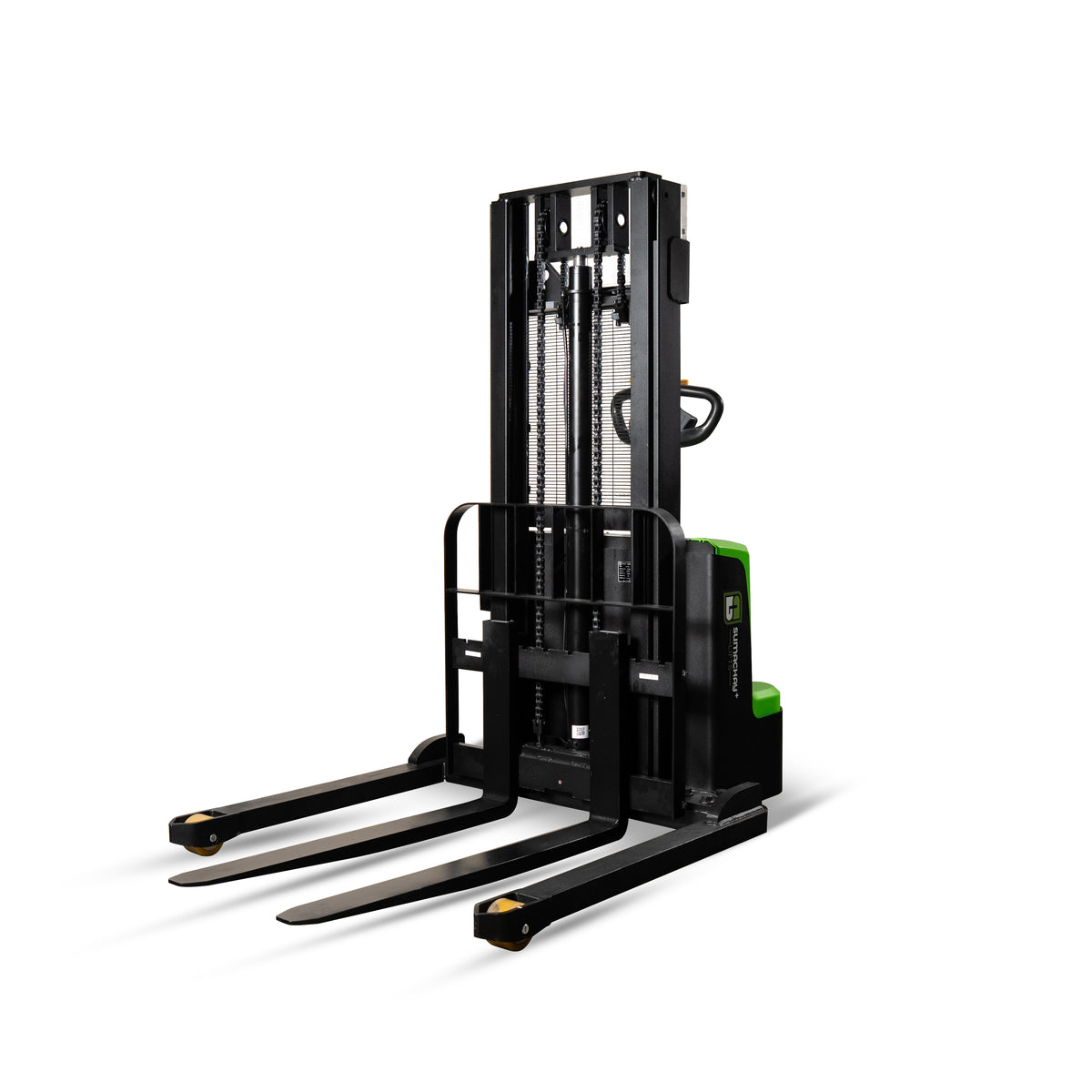

SST15-C+ 3300 lb Compact Electric Pallet Stacker – 98" Lift Height
Compact electric stacker for tight aisles and low-clearance warehouses. 1500 kg capacity, 2.5 m lift, 18-month Sumachay Plus warranty.
Financing available · From $161/mo*60-month lease, OAC, plus HST. Shipping can be included.
At a Glance
Built for tight aisles, low-clearance warehouses, and operators who need a full 1500 kg lift without the footprint of a full-size stacker.
Available across Canada. Ships from our Toronto distribution centre (840 Flint Road, North York, ON).
Introducing the Sumachay Plus SST15-C+, the compact Electric Pallet Stacker backed by Sumachay Plus and built for facilities where overhead clearance and aisle space are limited. Built for Canadian warehouses, distribution centers, retail stockrooms, and light manufacturing, the SST15-C+ delivers a full 1,500 kg (3,300 lb) load capacity with a 2,500 mm (98 in / 8.2 ft) lift height in a low-profile chassis that moves easily through low doorways, trailers, and elevators.
Premium Sumachay Plus Advantages
- Extended 18-Month Premium Warranty: Sumachay Plus coverage against manufacturing defects for confident, long-term ownership.
- High-Efficiency DC Drive with Variable Speed Control: A proportional control system delivers smooth, precise travel and lifting, reducing mechanical shock, saving energy, and extending service life.
- Lithium-Ion Power: A 24V lithium (LiFePO4) battery provides fast opportunity charging and consistent performance across multi-shift operations, with no watering or gas venting.
- 1,500 kg (3,300 lb) Capacity: Full stacking capacity in a compact package, rated at a 600 mm load center.
- Compact, Low-Clearance Design: A 1,730 mm (68 in) lowered mast and low static height fit through standard doorways and inside shipping containers and elevators.
- Precise Proportional Lift and Lower: Fine control with an automatic soft-landing buffer near floor level protects fragile loads.
- Operator-Preferred Ergonomics: A low-mounted tiller and intuitive controls reduce steering effort and operator fatigue across long shifts.
Key Features
- Full Stacking Capacity: Safely lift and stack loads up to 1,500 kg (3,300 lb) at a 600 mm load center.
- Compact 98 in Lift Height: A 2,500 mm (98 in / 8.2 ft) maximum lift enables efficient multi-level storage in space-constrained facilities, while the low lowered-mast height keeps travel and storage easy.
- DC Drive with Variable Speed Control: Proportional lifting and lowering keeps motion smooth and stable, minimizes mechanical shock, lowers energy consumption, and reduces wear on the mast, chains, and chassis for a longer service life.
- Premium Lithium-Ion Battery: A 24V LiFePO4 battery with a matched charger recharges in roughly 2 to 4 hours and supports opportunity charging for multi-shift operations without battery swaps.
- Rugged and Durable Construction: A heavy-duty steel frame, double-chain mast, and high-strength 40 mm single-piece forks resist deformation under load for years of dependable service.
- Precise Control System: Proportional hydraulic control delivers smooth, accurate load handling, with an automatic lowering buffer that gently sets loads near floor level.
- Operator-Centric Ergonomics: A low-mounted longer tiller reduces steering force, and 180-degree steering with a tight turning radius keeps the truck maneuverable in narrow aisles.
- Intelligent Safety Features: Electromagnetic braking, automatic travel-speed reduction when the forks are raised, a cylinder explosion-proof valve that guards against uncontrolled descent, an emergency reverse switch, and battery low-voltage protection.
- Maintenance-Friendly Design: An integrated tiller display shows operating status and fault codes for quick diagnosis, and a built-in charger with an onboard cable storage box simplifies daily charging.
The Sumachay Plus SST15-C+ is backed by an 18-month Sumachay Plus limited warranty against manufacturing defects, so your investment is protected. Our technical support team is available to assist with any questions or service needs.
Ideal Applications
The SST15-C+ is purpose-built for compact, low-clearance environments across Canada:
- Container and Trailer Loading: The low mast height clears standard container and trailer door openings for efficient loading and unloading.
- Elevator-Served Floors: A compact footprint and low overall height move easily between levels in multi-story facilities.
- Retail and Backroom Storage: Maximize vertical storage in stockrooms with low ceilings and narrow aisles.
- Warehousing and Distribution: Stack and retrieve pallets in tight-aisle layouts with precise, stable control.
- Light Manufacturing: Support work-in-progress storage and line-side material handling in space-constrained plants.
Choose the Sumachay Plus SST15-C+ Premium Series when you need full stacking capacity in a compact, low-clearance machine backed by Canadian-based Sumachay support.
Sumachay Plus SST15-C+ Compact Series Technical Specifications
| Specification | Unit | Value |
|---|---|---|
| Model | — | SST15-C+ |
| Manufacturer | — | Sumachay Plus |
| Drive Type | — | Electric |
| Manner of Operation | — | Walkie |
| Load Capacity | kg / lbs | 1500 / 3300 |
| Load Centre | mm | 600 |
| Lift Height (Max) | mm | 2500 |
| Lowered Fork Height | mm | 70 |
| Mast Lowered Height | mm | 1730 |
| Mast Extended Height | mm | 3300 |
| Overall Length (With Forks) | mm | 1705 |
| Overall Length (Without Forks) | mm | 615 |
| Overall Width (Chassis) | mm | 820 |
| Fork Size (s×w×l) | mm | 40×100×1070 |
| Fork Width Adjustable Range | mm | 200-795 |
| Straddle Inner Width (Adjustable) | mm | 970 / 1110 / 1250 |
| Straddle Outer Width (Adjustable) | mm | 1150 / 1290 / 1430 |
| Tire Material | — | Polyurethane (PU) |
| Driving Wheel Size | Ø×w (mm) | Ø210×70 |
| Load Wheel Size | Ø×w (mm) | Ø100×64 |
| Wheelbase | mm | 1245 |
| Turning Radius | mm | 1435 |
| Min. Ground Clearance (Center of Wheelbase) | mm | 40 |
| Min. Aisle Width (800×1200mm Pallet) | mm | 2217 |
| Min. Aisle Width (1000×1200mm Pallet) | mm | 2290 |
| Driving Speed (Loaded/Unloaded) | km/h | 4 / 4.5 |
| Lifting Speed (Loaded/Unloaded) | mm/s | 101 / 185 |
| Lowering Speed (Loaded/Unloaded) | mm/s | 137 / 208 |
| Maximum Gradeability (Loaded/Unloaded) | % | 5 / 10 |
| Brake Type | — | Electromagnetic |
| Drive Motor Rating (DC) | kW | 0.75 |
| Lift Motor Rating | kW | 2.5 |
| Type of Drive Control | — | DC Variable Speed Control |
| Battery Type | — | Lithium-Ion (LiFePO4) |
| Battery Voltage & Capacity | V / Ah | 24 / 100 |
| Charger | V / A | 24 / 30 |
| Charging Time | Hours | 2-4 |
| Noise Level | dB(A) | ≤75 |
| Service Weight (Including Battery) | kg | 619 |
Specifications are subject to minor variations. All measurements are approximate.
Premium Warranty Information — Sumachay Plus SST15-C+
Your Sumachay Plus SST15-C+ Compact Electric Pallet Stacker comes with an 18-month warranty that begins on the date of purchase, as indicated on your invoice.
This extended premium warranty covers:
- Manufacturing Defects: Coverage for manufacturing defects in major components including the DC drive motor, controller, battery, hydraulic system, and structural elements.
- Drive and Lift System Protection: Coverage for the DC drive motor, lift motor, and control systems.
- Lithium Battery Warranty: The lithium battery is warranted against manufacturing defects. Normal, gradual loss of capacity over time is not covered.
- Hydraulic System Coverage: Coverage for hydraulic components and the mast assembly.
- Replacement Parts: Replacement parts for covered defects during the warranty period.
Important Warranty Exclusions:
This warranty does not cover issues arising from:
- Normal wear and tear of consumable components (wheels, forks, seals, hydraulic fluids)
- Gradual battery capacity or runtime loss over the term (normal lithium consumable wear)
- Accidents, negligence, misuse, or operation beyond rated capacity
- Use in environments where the unit is submerged in water or exposed to corrosive fluids or chemicals
- Modifications or repairs performed by unauthorized service providers
- Failure to follow recommended maintenance procedures and inspection schedules
- Damage from improper charging practices or use of non-approved chargers
- Overloading beyond the 1,500 kg (3,300 lb) rated capacity
For warranty claims, technical support, or service inquiries, please contact our dedicated Sumachay Plus Premium Support Team. We are committed to keeping your operations running smoothly with minimal downtime.
Sumachay Plus — Premium Quality, Premium Support.
Black Friday Price · $6,500Ends Dec 1
Trusted by Leading Canadian Operations Teams
Google Review
Great service, and a great choice with the pallet stacker and the hand pump truck. Both are electric and work amazingly well.
Google Review
Best quality packaging products and prices in the GTA for all our warehouse supplies.
Google Review
Great experience buying stretch wrap and an electric pallet jack. Quality and service were excellent.
Google Review
Sturdy, easy to use, and perfect for handling heavy loads. The customer service really stood out, and everything arrived in perfect condition. Highly recommend Sumachay.
Google Review
Bought an electric pallet jack from Sumachay. Great product with a great price, and the best, friendliest customer service. Definitely recommended.
Google Review
Bought a manual pallet jack first, then came back for the SELR20 Electric Pallet Jack. They even helped me fit it into my car.
Google Review
Purchased electric and manual pallet jacks and loaded them in my van. Great price and great customer service. Definitely recommended.
Google Review
Great product and great service. The pallet jack is best quality.
Great service, and a great choice with the pallet stacker and the hand pump truck. Both are electric and work amazingly well.
Will It Fit Your Facility?
Check the critical dimensions before you order.
Mast Lowered Height
68″ (1730 mm)
Max Lift Height
98″ (2500 mm)
Overall Length
67″ (1705 mm)
Overall Width
32″ (820 mm)
Turning Radius
56″ (1435 mm)
Min Aisle Width (1000×1200)
90″ (2290 mm)
Fork Length
42″ (1070 mm)
Lowered Fork Height
3″ (70 mm)
Adjustable Straddle Legs
Adjust the support legs to match different pallet widths — one stacker handles multiple pallet sizes across your operation.
Pallet Compatibility
- Standard open-bottom pallets (GMA, EUR)
- Closed-bottom pallets, skids, drums, and custom bases (forks reach in flat, with no support legs under the load)
- Wide and oversized non-pallet loads, provided fork-insertion clearance exists
SST15-C+ vs SST15+ — Choose by Environment
Compact & efficient vs flagship & max performance
| Feature | SST15-C+ (Compact) | SST15+ (Flagship) |
|---|---|---|
| Best For | Tight aisles, low-clearance doorways, efficient operations | Multi-shift, high-rack warehouses, maximum performance |
| Max Lift Height | 2.5 m (98″) · fits mid-height racking | 3.5 m (138″) · reaches high racking |
| Lowered Mast | 1,730 mm (68″) · clears low doorways | 2,270 mm (89″) |
| Drive System | 0.75 kW DC drive · compact & efficient | 0.75 kW DC drive · variable-speed proportional control |
| Warranty | 18 months (Sumachay Plus) | 18 months (Sumachay Plus) |
| Capacity | 1,500 kg (3,300 lb) | 1,500 kg (3,300 lb) — same |
