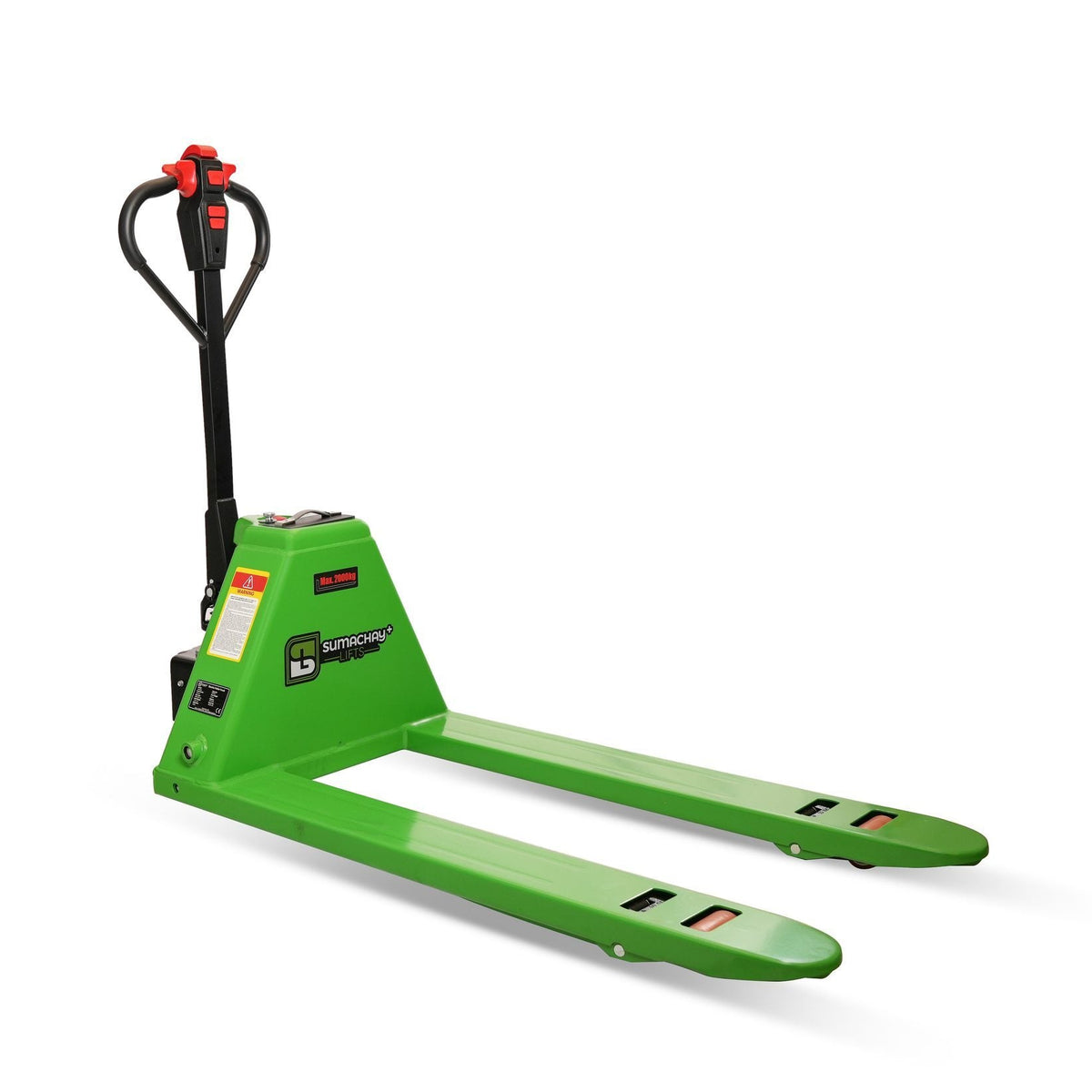

Green electric pallet jack on a white background
SELR20+ lithium electric pallet jack 4,400 lb capacity – front view
SELR20+ lithium electric pallet jack 4,400 lb capacity – side profile
SELR20+ lithium electric pallet jack 4,400 lb capacity – operator handle controls
SELR20+ lithium electric pallet jack 4,400 lb capacity – 48V lithium battery
SELR20+ lithium electric pallet jack 4,400 lb capacity – fork detail
SELR20+ lithium electric pallet jack 4,400 lb capacity – warehouse loading dock
SELR20+ lithium electric pallet jack 4,400 lb capacity – turning radius demo
SELR20+ lithium electric pallet jack 4,400 lb capacity – polyurethane load wheels
SELR20+ lithium electric pallet jack 4,400 lb capacity – control panel
SELR20+ lithium electric pallet jack 4,400 lb capacity – charging port
SELR20+ lithium electric pallet jack 4,400 lb capacity – hydraulic unit
SELR20+ lithium electric pallet jack 4,400 lb capacity – heavy-duty chassis
SELR20+ lithium electric pallet jack 4,400 lb capacity – nameplate specifications
SELR20+ lithium electric pallet jack 4,400 lb capacity – pallet entry view
SELR20+ lithium electric pallet jack 4,400 lb capacity – drive wheel
SELR20+ lithium electric pallet jack 4,400 lb capacity – safety features
SELR20+ lithium electric pallet jack 4,400 lb capacity – braking system
SELR20+ lithium electric pallet jack 4,400 lb capacity – shipping configuration
SELR20+ lithium electric pallet jack 4,400 lb capacity – in-use warehouse
SELR20+ lithium electric pallet jack 4,400 lb capacity – comparison view
SELR20+ lithium electric pallet jack 4,400 lb capacity – feature highlights
Sumachay Plus Series

SELR20+ 4400 lb Lithium Electric Pallet Jack – 18 Month Warranty

Built for serious daily operations.
Designed to minimize downtime and reduce long-term ownership risk.

$3,200.00 CAD $2,600.00 CAD
In Stock in Canada
Fast Shipping
18-Month Warranty
Canadian Support
At a Glance
4400 lb Capacity (2000 kg)
27″ × 45″ Fork Dimensions (OAW × L)
48V / 15Ah Lithium Battery
58″ Turning Radius

Diagnostic codes, premium components, and extended coverage — built for heavy-duty warehouse and distribution operations.

Have questions? See FAQ ↓
Estimate shipping

Configured for multi-shift warehouses that move pallets every day.

Looking for the essentials? The SELR20 offers Same 4,400 lb capacity and 30Ah battery — without the extended warranty and diagnostic features.

Manuals & Downloads

PDF files open in a new tab.

  • SELR20+ Technical Specification Sheet PDFEN1.0
    Download
  • SELR20+ Electric Pallet Jack Operating Manual PDFEN2.0
    Download

Trusted by operations teams across Canada

★★★★★ 4.9 Excellent 316 Google Reviews Read reviews →
Fit & Compatibility

Will It Fit Your Facility?

Check the critical dimensions before you order.

Turning Radius

58″ (1468 mm)

Min Aisle Width (1000×1200)

74″ (1874 mm)

Min Aisle Width (800×1200)

76″ (1924 mm)

Overall Width

27″ (685 mm)

Overall Length

62″ (1572 mm)

Fork Outside Width

27″ (685 mm)

Fork Length

45″ (1143 mm)

Ramp Capability

Maximum incline the pallet jack can safely climb — useful for loading docks and warehouse ramps.

Loaded 5%
Unloaded 10%

Pallet Compatibility

  • Standard GMA pallet (40 × 48″)
  • EUR pallet (800 × 1200 mm)
  • IOPP pallet
  • Any open-bottom pallet with standard fork entry
Sumachay Plus Series

SELR20+ Sumachay Plus Series

SELR20+ is configured for daily commercial operation with premium components and extended coverage.

Continuous Daily Use

Rated for daily, high-duty operation

Faster Diagnostics

Clear fault codes for faster service

E21

Premium Grade Components

Selected for durability and lower failure rate

18-Month Warranty

50% longer coverage, automatic

Why SELR20+ Is Different

Feature SELR20+ Standard Pallet Jacks
Warranty Coverage 18 months 6–12 months
Diagnostic Fault Codes Built-in
Component Grade Premium Standard
Daily Duty Cycle Continuous, multi-shift Moderate
Service Documentation Full technical manuals Basic
Technician Support Limited
Warranty Coverage
SELR20+ 18 months
Standard Pallet Jacks 6–12 months
Diagnostic Fault Codes
SELR20+Built-in
Standard Pallet Jacks
Component Grade
SELR20+Premium
Standard Pallet JacksStandard
Daily Duty Cycle
SELR20+Continuous, multi-shift
Standard Pallet JacksModerate
Service Documentation
SELR20+Full technical manuals
Standard Pallet JacksBasic
Technician Support
SELR20+✓ Yes
Standard Pallet JacksLimited
Most daily-use warehouses standardize on this configuration.

Frequently Asked Questions

Warranty & Sumachay Plus

What warranty comes with the SELR20+ electric pallet jack?
The SELR20+ includes an 18-month extended warranty as part of the Sumachay Plus Series — 50% longer than standard models. Coverage includes the drive motor, controller, battery, hydraulic system, and charger against manufacturing defects. Warranty registration is automatic at purchase.
Does the SELR20+ have built-in diagnostic codes?
Yes. The SELR20+ features built-in diagnostic codes displayed on the controller, allowing your team to identify issues quickly without waiting for a technician. This reduces downtime by enabling faster troubleshooting and targeted parts ordering.

Battery & Operation

How long does the SELR20+ battery last and how is it charged?
The SELR20+ uses a lithium-ion 24V 30Ah battery. Charge time is approximately 4 hours using the included 120V plug-in charger — no special wiring required. The lithium-ion battery supports opportunity charging without reducing battery life.
What is the load capacity of the SELR20+ electric pallet jack?
The SELR20+ has a load capacity of 4,400 lbs (2,000 kg), making it suitable for heavy-duty warehouse and logistics operations. For full dimensions and performance data, see the Technical Specifications tab above.
Can the SELR20+ handle dock plates and loading ramps?
Yes. The SELR20+ is designed for truck dock operations with its 4,400 lb capacity and robust electric drive. It handles standard dock plates and loading ramps under normal conditions. For specific grade or ramp requirements, contact our team for guidance.

Service & Delivery

How does parts and service support work for the SELR20+?
We stock replacement parts at our Ontario warehouse. Common items — batteries, chargers, wheels, seals, and controllers — typically ship within 1–3 business days. Our service center also handles in-person repairs and remote troubleshooting support.
How do I request a delivery quote for the SELR20+?
Use the "Request a Delivery Quote" button on this page or contact us at sales@sumachay.com. The SELR20+ ships via LTL freight on a pallet. Delivery typically takes 3–7 business days after 1–3 days handling time. Liftgate and appointment delivery may be available depending on carrier and location.
Plus Series

Technical Specifications

Complete Engineering Data

Capacity 4400 lb (2000 kg)
Fork Dimensions 27″ × 45″ (685 × 1143 mm) Overall Width × Length
Individual Fork Width 5.9″ (150 mm)
Battery 48V Lithium LiFePO4
Turning Radius 58″ (1468 mm)
Warranty 18 months— Sumachay Plus
Expand Full Engineering Specs

Dimensions

Overall Length 62″ (1572 mm)
Overall Width 27″ (685 mm)
Wheelbase 39″ (1000 mm)
Turning Radius 58″ (1468 mm)
Min Ground Clearance 1″ (35 mm)
Service Weight 168 kg (370 lb)
Lowered Fork Height 85 mm

Forks

Fork Length 45″ (1143 mm)
Fork Width (per tine) 5.9″ (150 mm)
Fork Thickness 2.0″ (50 mm)
Fork Outside Width 27″ (685 mm)
Load Center 24″ (600 mm)

Power System

Battery Type Lithium LiFePO4
Voltage / Capacity 48V / 15Ah
Drive Motor 0.75 kW DC
Lift Motor 0.8 kW
Controller DC Controller
Charger Input 120V / 60Hz
Charge Time (0–100%) 4.0 hours

Performance

Rated Capacity 2000 kg (4400 lb)
Travel Speed (loaded) 4.2 km/h
Travel Speed (unloaded) 4.5 km/h
Gradeability (loaded / unloaded) 5% / 10%
Noise Level ≤ 70 dB(A)
Aisle Width (1000×1200 pallet) 74″ (1874 mm)
Aisle Width (800×1200 pallet) 76″ (1924 mm)

Wheels & Brakes

Wheel Config 1 / 2
Wheel Material Polyurethane (PU)
Drive Wheel Ø210 × 70 mm
Load Wheel Ø80 × 85 mm
Tread Width 21″ (535 mm)
Service Brake Electromagnetic Brake

Compliance

CE Certified Yes
Warranty 18 months— Sumachay Plus
Duty Cycle Standard

Why Most Teams Upgrade to SELR20+

For daily operations, reduced service interruptions often exceed the upgrade cost over time.

UPGRADE COST
$300
From SELR20 to SELR20+
Additional warranty +6 months
Diagnostic fault codes Included
Premium components Included
MONTHLY EQUIVALENT
$2,600 ≈ $108/month over 24 months
Upgrade cost: $12.50/month
WHAT $300 PREVENTS
1 unplanned technician visit $150–$400
1 hour of warehouse downtime $200–$1,000
1 emergency rental $500–$800/week
BREAK-EVEN POINT
One avoided service call typically covers the upgrade difference.

One avoided service call covers the upgrade.

18MONTHS

18-Month Commercial Warranty Included

50% longer coverage. Covers motors, controllers, batteries, and hydraulics through the critical break-in period.

Longer Coverage 18 months vs. 12 on standard models.
Full Component Coverage Motor, controller, battery, hydraulics.
Break-In Period Protection Coverage when components need it most.
No-Hassle Claims Direct process. Fast replacement.
Technical Feature

Built-In Diagnostic System

Fault codes allow faster issue identification and service turnaround.

E21

Instant Fault Identification

Controller displays codes. No guesswork.

Shorter Service Turnaround

Techs arrive knowing the issue. Parts ready.

In-House Troubleshooting

Reference codes directly from the manual.

Built for Maintenance Teams

Designed for teams who service their own fleet.

Example Fault Code
E21

Motor controller communication error. Check wiring harness connection

Look up code in manual or contact support

The SELR20 Electric Pallet Jack is not only a top-quality product but also backed by customer service that sets Sumachay apart from the competition. A true differentiator in the market.

Purchased for Canadian Tire 108. The jacks, the pricing, and the service are all excellent. If you're considering buying, go right ahead, you won't be disappointed

Sumachay Lifts saved the day during a critical project. We urgently needed stretch wrap, and their next-day shipping allowed us to stay on schedule. Their supply chain expertise and customer service are second to none

Is the SELR20+ right for you?

Compare your usage profile.

✓ YOU SHOULD CHOOSE THE SELR20+
  • 2+ shifts per day
  • Downtime carries significant operational cost
  • Fleet of 3+ pallet jacks
  • Need diagnostic visibility for in-house troubleshooting
  • Extended warranty coverage required
→ CONSIDER THE SELR20 INSTEAD
  • Single shift, under 50 moves/day
  • Loads rarely exceed 3,500 lbs
  • On-site maintenance staff available
  • Budget is the primary constraint
