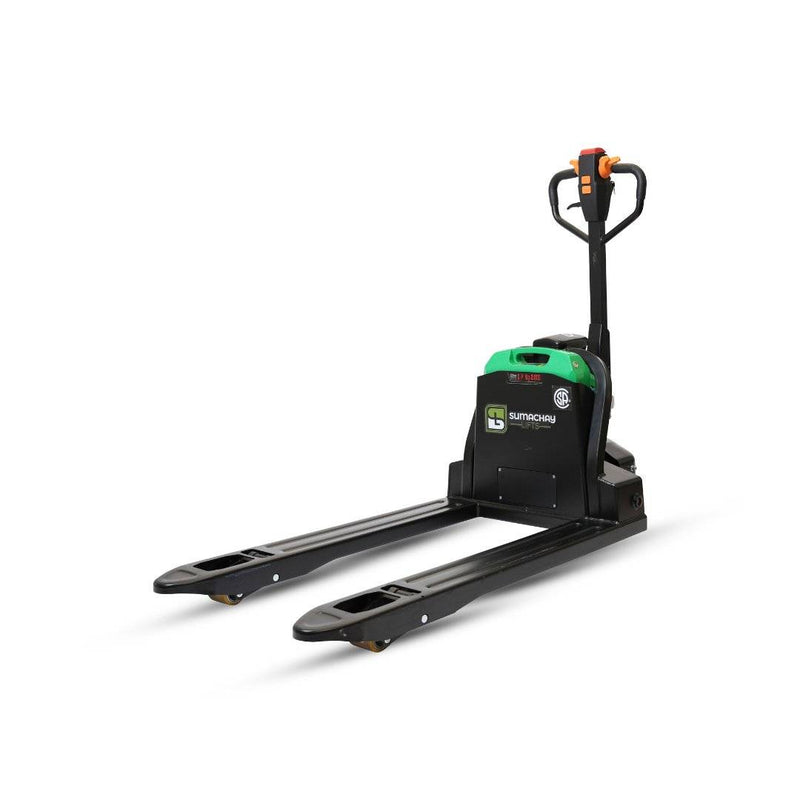

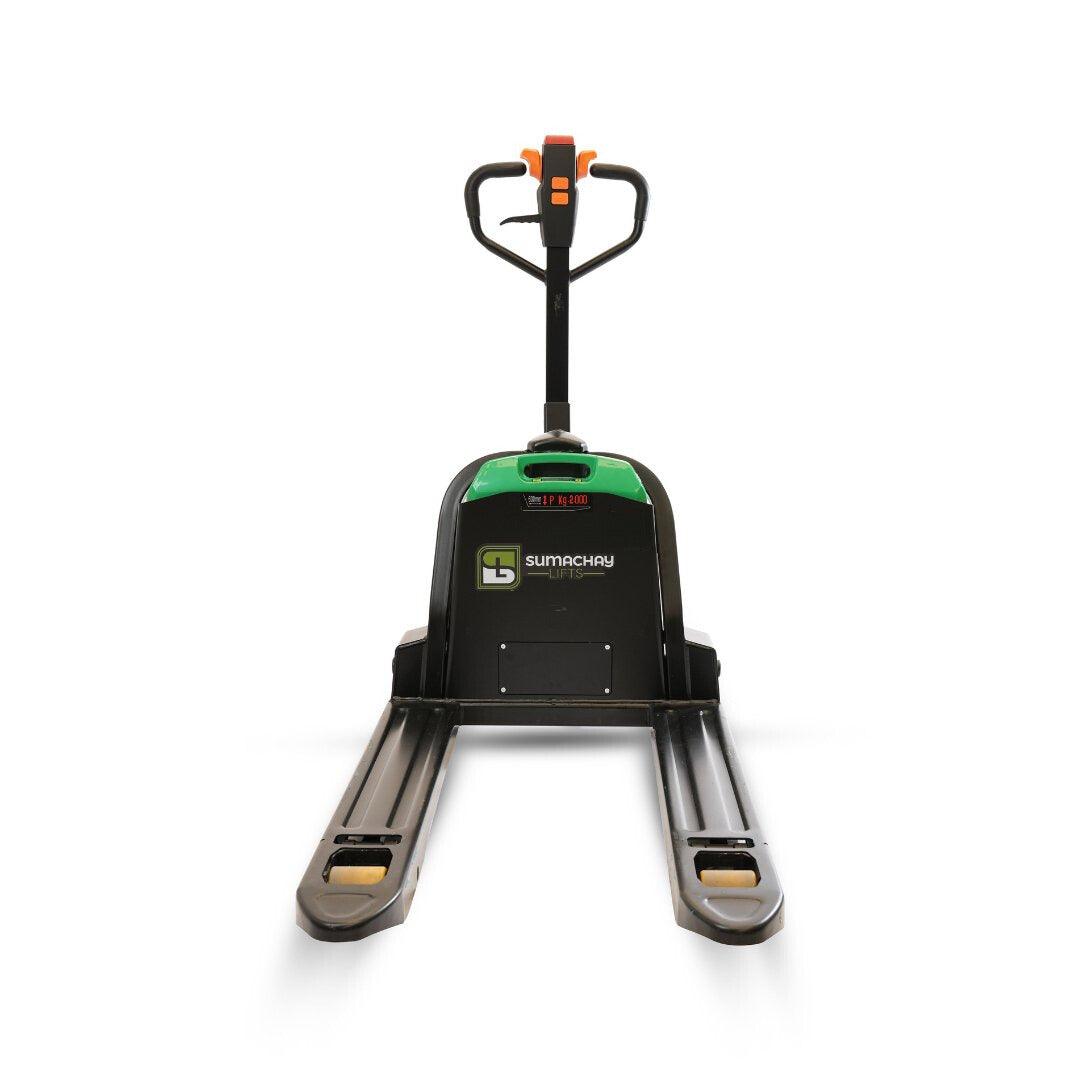

SELR20 Electric Pallet Jack – 4400 lb Lithium-Ion Capacity
• Heavy loads over 3,500 lbs
• Manufacturing, logistics, and high-throughput warehouses
• Multi-shift operations requiring fast charging
• Not recommended for occasional or light-duty use.
- ✔️ Built to carry up to 4,500 lbs with a 30 Ah lithium-ion battery offering 7-hour service life.
- ✔️ 3-function hand control, tight turning radius, and ramp climbing capabilities for easy navigation.
- ✔️ Polyurethane wheels for smooth movement and a removable battery for flexible charging.

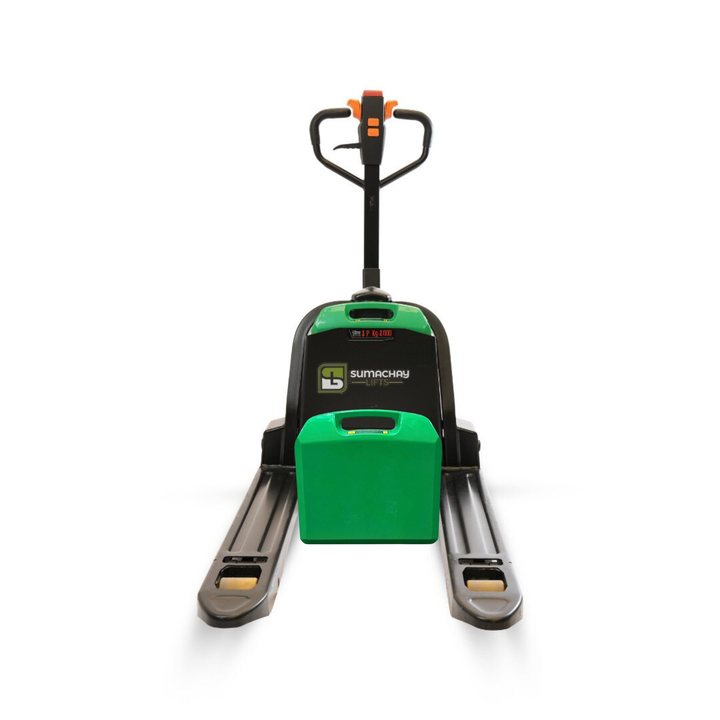

Removable Battery
110V Wall Charger
Effortless Ramp Climbing
Tight Turning Radius
Prefer a formal quote? Get it by email.
“The SELR20 Electric Pallet Jack is not only a top-notch product but also backed by excellent customer service that truly sets Sumachay Lifts apart from the competition!”
IHL Canada
The SELR20 Electric Pallet Jack is equipped with a powerful lithium-ion battery and offers a robust 2-ton capacity. Its advanced battery technology ensures extended usage and rapid charging, ideal for heavy-duty operations and demanding tasks.
Ideal for Various Applications:
Whether you're in a warehouse, a grocery store, or a distribution center, the SELR Electric Pallet Jack is designed to meet your needs. Its high capacity, flexible charging, and safety features make it an essential addition to any facility. Upgrade your material handling equipment with Sumachay's reliable and efficient electric power pallet jack.
Download PDF
SELR20 Electric Pallet Jack - Technical Specifications
| Specification | Unit | Value |
|---|---|---|
| Model | SELR20 | |
| Drive type | Electric | |
| Manner of operation | Walkie | |
| Load Capacity | LBS | 4500 |
| Load Centre | Inch | 23.6 |
| Distance between fork backrest and front wheel | Inch | 39.92 |
| Wheel Base | Inch | 51.69 |
| Tire Material | PU | |
| Driving wheel size | Φ×w (Inch) | Φ8.27×2.76 |
| Bearing wheel size | Φ×w (Inch) | Φ3.15×3.35 |
| Qty of wheels, Front/Rear (x = driving wheel) | 1x/2 | |
| Tread | b11 (Inch) | 21.06 |
| Lifting Height | h3 (Inch) | 7.87 |
| Handle height in the operation position | h14 (Inch) | 29.13/45.67 |
| Lowered fork height | h13 (Inch) | 3.35 |
| Overall Length | l1 (Inch) | 65.86 |
| Body Length | l2 (Inch) | 17.83 |
| Overall Width | b1/b2 (Inch) | 26.97 |
| Fork Size | s/e/l (Inch) | 1.97/5.91/48.03 |
| Fork Width | b5 (Inch) | 26.97 |
| Min. Ground Clearance | m2 (Inch) | 1.38 |
| Aisle width for pallets 39.37*47.24 crossways | Ast (Inch) | 73.78 |
| Aisle width for pallets 31.5*47.24 lengthways | Ast (Inch) | 75.75 |
| Turning Radius | Wa (Inch) | 57.8 |
| Driving Speed, load/unload | (km/h) | 4.2/4.5 |
| Maximum gradeability load/unload | (%) | 5/10 |
| Brake Type | Electromagnetic brake | |
| Drive Motor | (kW) | 0.75 |
| Lift Motor | (kW) | 0.8 |
| Lithium LiFePO4 Battery voltage & rate capacity | (V/Ah) | 24/30 |
| Battery Weight（±5%） | LBS | 22.4 |
| Type of drive control | DC | |
| Noise level | (dB(A)) | ≤70 |
| Service Weight（with battery） | LBS | 370 |
Warranty Information for Sumachay Electric Pallet Jacks and Stackers
Your Sumachay electric pallet jack or stacker is protected by a twelve month limited warranty that begins on the date of purchase as shown on your invoice. This warranty provides coverage for legitimate faults or breakdowns that occur under normal use.
The warranty does not apply to normal wear and tear or to issues that result from improper use negligence accidents or operation outside of the equipment rated capacity.
Overloading Warning: Any damage to the forks the chassis the hydraulic pump the motor or the battery that results from overloading will void the warranty. Evidence of overloading such as bent forks a leaking pump a deformed mast or signs of motor strain will automatically void warranty coverage.
Motor and Battery Coverage: The electric motor and lithium battery are covered against manufacturing defects only. Both components can sustain permanent damage if the machine is overloaded or used improperly. If inspection indicates overload related stress for example bent forks a warped frame burnt motor smell overheated controller or a leaking pump the warranty will not apply.
Damage caused by exposure to fluids chemicals or submersion in water is not covered under this warranty.
To help ensure long term performance you should perform routine maintenance which includes regular cleaning correct lubrication and proper storage.
If you have questions about your warranty or need service support our team is ready to assist you.
View Full Service and Warranty PolicyFAQs: SELR20 4400lb Electric Pallet Truck
Q: How long does the SELR20’s lithium-ion battery last on a full charge?
A: The SELR20's 30Ah lithium-ion battery offers 8 to 10 hours of usage on a full charge, depending on the workload. It features rapid charging capabilities, typically requiring just 4-5 hours for a complete recharge, ensuring minimal downtime.
Q: Is the SELR20 suitable for use in cold storage facilities?
A: Yes, the SELR20 is designed for optimal performance in cold storage environments. It operates efficiently even in low-temperature settings, making it an excellent choice for warehouses requiring reliable performance in colder conditions.
Q: What kind of maintenance does the SELR20 require?
A: The SELR20 is engineered for minimal maintenance. Regularly check the battery, wheels, and controls to maintain peak performance. Its lithium-ion battery requires significantly less maintenance than traditional lead-acid batteries, reducing overall downtime and costs.
Q: How does the SELR20 handle uneven surfaces?
A: The SELR20 is optimized for smooth warehouse floors but can manage minor uneven surfaces with ease. For handling rougher terrains, consider exploring other models specifically designed for challenging conditions.
Q: What is the warranty coverage for the SELR20?
A: The SELR20 comes with a one-year parts-only warranty, ensuring support for essential components.
Q: How compact is the SELR20 compared to other pallet trucks?
A: The SELR20 features a compact and maneuverable design, perfect for navigating tight spaces in warehouses. Despite its smaller footprint, it delivers impressive power and performance without compromising efficiency.
Q: Can the SELR20 be customized for specific warehouse needs?
A: Yes, the SELR20 can be customized to meet specific warehouse requirements. For example, the SELR20-S variant includes an integrated electronic scale. Contact our team to discuss customization options tailored to your needs.
SELR20 4400lb Electric Pallet Truck: The Ultimate Solution for Canada’s Heavy-Duty Material Handling
Heavy-Duty 4400lb Load Capacity for Canadian Warehouses
The SELR20 4400lb Electric Pallet Truck is engineered to meet the rigorous demands of Canada’s bustling warehouse and logistics sector. With an impressive load capacity of 4,400 lbs, this electric pallet truck is ideal for businesses requiring efficient and reliable heavy-duty material handling. Whether you're transporting large pallets of goods or navigating busy warehouse floors, the SELR20 delivers the power and performance needed to keep operations running smoothly.
Advanced Lithium-Ion Battery for Long-Lasting Performance
In Canada’s fast-paced warehouse environments, minimizing downtime is essential. The SELR20 is equipped with an advanced lithium-ion battery that offers extended operational hours and rapid charging times. This technology ensures your pallet truck is always ready, reducing interruptions and boosting productivity. Additionally, the battery is energy-efficient, helping lower operational costs and contributing to a greener warehouse.
Ergonomic Design for Enhanced Operator Comfort
The SELR20 4400lb Electric Pallet Truck is designed with operator comfort in mind. Its ergonomic handle and user-friendly controls make it easy to operate, even during long shifts. This design reduces operator fatigue, maintaining productivity throughout the day. For businesses across Canada where labor efficiency is crucial, the SELR20’s ergonomic features provide a significant advantage.
Maneuverable Design for Tight Spaces in Canadian Warehouses
Space is often limited in many Canadian warehouses, and the SELR20’s compact design makes it perfect for navigating narrow aisles and tight corners. Despite its powerful load capacity, the SELR20 offers exceptional maneuverability, allowing for precise control in confined spaces. This makes it an excellent choice for warehouses of all sizes, especially in urban areas where space is at a premium.
Durable and Reliable Construction for Long-Term Use
Constructed with high-quality materials, the SELR20 is built to withstand the daily wear and tear of warehouse operations. Its robust steel frame and durable components ensure long-term reliability, providing excellent return on investment. For Canadian businesses seeking a pallet truck that can endure demanding operations, the SELR20 is a dependable choice that delivers lasting value.
Versatile Applications Across Various Canadian Industries
The SELR20 4400lb Electric Pallet Truck is versatile and suitable for a wide range of applications across Canada’s diverse industries:
- Retail Distribution Centers: Efficiently manage large volumes of goods, ensuring timely deliveries to retail locations across Canada.
- Manufacturing Facilities: Keep production lines running smoothly by handling heavy raw materials and finished products with ease.
- Cold Storage Warehouses: The SELR20 performs reliably even in low-temperature environments, making it ideal for cold storage applications.
- Logistics and Freight: Optimize logistics operations by ensuring quick and safe transportation of heavy pallets with the SELR20.
Boost Productivity with the SELR20 in Canada’s Competitive Market
In Canada’s competitive market, efficiency and productivity are key to success. The SELR20 4400lb Electric Pallet Truck is designed to help businesses stay ahead by improving material handling processes. Its powerful performance, combined with its user-friendly design, makes it an essential tool for any warehouse aiming to boost efficiency and reduce operational costs.
Request a Quote
A sales representative will contact you shortly.
Freight is calculated based on weight and delivery location. Typical freight cost ranges from $180–$500 depending on province and whether delivery is urban or rural.
Why the SELR20 Electric Pallet Jack Works Well
4,500 lb Lithium Capacity - Industry-Leading Power
Handles heavy-duty pallet loads with ease. Superior capacity compared to standard electric jacks for demanding warehouse operations.
Fast Charging & Extended Runtime
High-capacity lithium-ion battery charges quickly and runs longer. Minimize downtime and maximize productivity across multiple shifts.
Heavy-Duty Dock & Truck Loading
Powerful electric drive handles heavier loads on and off trucks effortlessly. Built for high-volume shipping and receiving operations.
Maximum Operator Comfort & Safety
Eliminates manual pumping strain entirely. Ergonomic design and powerful motor reduce fatigue and injury risk in high-intensity operations.
Is the SELR20 Right for Your Operation?
The SELR20 is ideal for facilities that need maximum capacity and power for heavy-duty pallet handling. Perfect for:
High-Volume Warehouses: Handle heavy loads efficiently in large distribution centers with demanding throughput requirements.
Trucking & Logistics: Load and unload heavy pallets quickly and safely. Ideal for freight terminals and shipping operations.
Manufacturing: Transport heavy raw materials and finished goods between production lines, storage, and shipping areas with maximum efficiency.
Retail & Wholesale: Handle heavy stock deliveries and backroom inventory moves with superior capacity and reliability.
Key Specifications at a Glance
Compare Machine Models
Choose the right electric pallet jack based on capacity, fork size, and workflow requirements
SESR15
Standard capacity for North American warehouse pallets
- Battery System: 24V 20Ah lithium-ion
- Charger Input: 110V standard
- Fits standard 40×48" GMA pallets
- 20Ah battery suitable for light daily throughput
- 110V charging works with standard outlets
SESR15-N
Narrow forks for Euro pallets and tight aisles
- Battery System: 24V 20Ah lithium-ion
- Charger Input: 110V standard
- Optimized for Euro pallets (31.5×47.2" / 800×1200mm)
- Narrow fork profile allows tighter aisle navigation
- Same motor and capacity as SESR15
SELR20
Higher capacity for heavier daily warehouse throughput
- Battery System: 48V 30Ah lithium-ion
- Charger Input: 110V standard
- 36% more capacity than SESR15
- Wider fork base provides greater stability under load
- 30Ah battery handles extended daily operation
SELR20-S
SELR20 power with integrated scale for compliance weighing
- Battery System: 48V 30Ah lithium-ion
- Charger Input: 110V standard
- Built-in electronic scale for freight verification
- Real-time weight data during pallet handling
- Eliminates need for separate floor scales at docks
Return on Investment
- Higher daily throughput versus entry-level models in busy facilities
- Fast-charge capability supports multi-shift workflows with less downtime
- Reduce operator fatigue on long travel distances and heavy loads
- Helps avoid forklift dependency for ground-level pallet transport
The Sumachay Advantage
Factory-direct pricing and Canadian warehouse support means better value and faster service for your business.
1-Year Warranty
Comprehensive coverage on parts and labor. We stand behind the quality of every unit we sell.
No-Questions-Asked Returns
Not satisfied? Return it. We make the process simple and hassle-free. (20% Restocking Fee Applies)
Next-Day Shipping Available
In-stock units ship fast from our Canadian warehouse. Minimize downtime and get back to work quickly.
Direct Manufacturer Support
No middlemen means you get expert help directly from our team. Faster resolution, better service.
