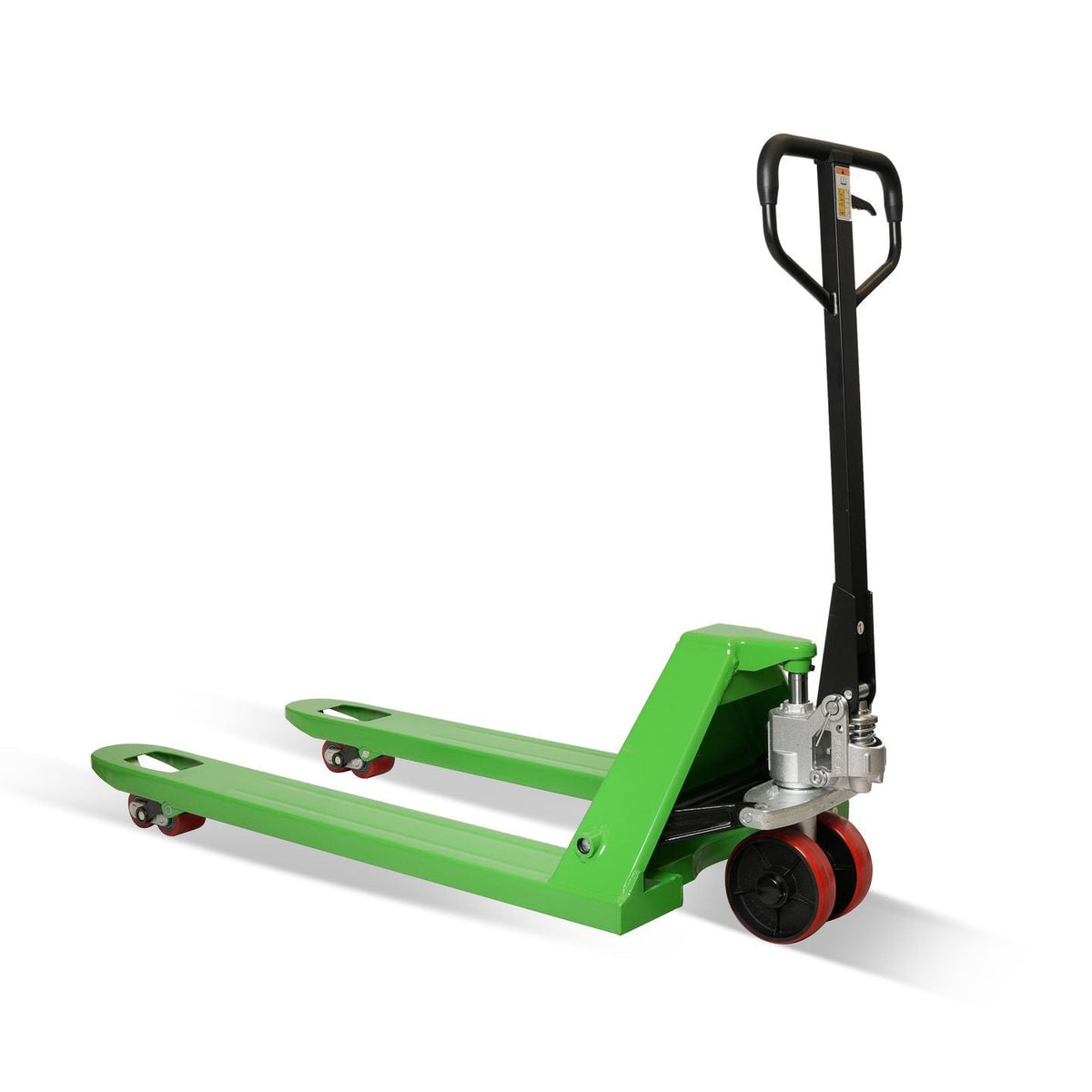

Sumachay Plus SH25+ 2500 kg Manual Pallet Jack Premium Series, 18-Month Warranty
• Warehousing, manufacturing, and logistics operations
• Facilities prioritizing durability, safety, and long service life
• Operators handling heavy loads over extended shifts
• Teams upgrading from standard manual pallet jacks
Prefer a formal quote? Get it by email.
The Sumachay Plus SH25+ represents the pinnacle of manual pallet jack engineering, delivering unmatched durability and efficiency for demanding industrial environments. Built with 100% automated robotic welding and featuring reinforced forks that increase static load capacity by 400 kg, the SH25+ sets a new standard in manual material handling equipment.
Premium Engineering Features
High-Strength Chassis with 100% Automated Robotic Welding
The SH25+ features precision-engineered robotic welding throughout its entire chassis, ensuring minimal welding deformation, exceptional structural consistency, and guaranteed welding quality. This advanced manufacturing process delivers superior strength and extends the operational lifespan far beyond conventionally welded units.
Reinforced Fork Design
Equipped with innovative grooved forks featuring additional stiffeners on the back, the SH25+ provides an impressive 400 kg increase in static load capacity compared to standard flat fork designs. This reinforcement ensures superior load stability and enhanced safety during operation.
45% Less Pulling Force
Advanced ergonomic engineering reduces the starting force required by 45% compared to standard models, significantly decreasing operator fatigue and improving productivity throughout extended work shifts.
Reinforced Top Cap
Additional support structures integrated into the top cap increase overall strength and extend the unit's lifespan, ensuring reliable performance even under the most demanding operational conditions.
Adjustable Push Rod
When forks become unbalanced after extended use, the adjustable push rod allows for precise height equalization, maintaining optimal performance and extending service life without requiring major repairs.
Enhanced Rocker Arm
The reinforced rocker arm provides superior mechanical support and exceptional stability during lifting and lowering operations, ensuring smooth and reliable performance.
Grooved V-Block for Extra Reinforcement
Strategic grooved V-block reinforcement adds critical structural integrity to high-stress areas, further enhancing durability and load-bearing capacity.
High-Quality Wear-Resistant Wheels & Rollers
Premium-grade steering wheels and load wheels are engineered for exceptional longevity and smooth operation, reducing maintenance requirements and ensuring consistent performance across various floor surfaces.
Big Opening for Load Wheels
The enlarged opening space around load wheels provides enhanced protection for the push rod and wheel forks by reducing debris accumulation, extending component life and maintaining optimal operation.
Ideal Applications
- Warehousing & Distribution: Efficient pallet movement in high-volume facilities
- Manufacturing Plants: Reliable transport of raw materials and finished goods
- Retail Operations: Stock management and floor replenishment
- Logistics Centers: Loading and unloading operations
- Food Service: Restaurant and hotel supply management
Why Choose Sumachay Plus?
Sumachay Plus represents our commitment to delivering premium-grade industrial equipment that combines cutting-edge manufacturing technology with practical, user-focused design. Every SH25+ unit undergoes rigorous quality control testing to ensure it meets our exacting standards for durability, safety, and performance.
Backed by our comprehensive 18-month warranty and expert Canadian technical support, the SH25+ is designed to provide years of reliable service while reducing operational costs through superior engineering and reduced maintenance requirements.
Sumachay Plus SH25+ — Technical Specifications
| Specification | Unit | Value |
|---|---|---|
| MODEL | ||
| Model | - | SH25+ |
| Capacity | kg | 2500 |
| Pump Type | - | BF |
| WHEELS | ||
| Wheel (Drive/Load) Type | - | PU/RU/Nylon |
| Size of Steering Wheel | ΦD mm | 180×50 |
| Size of Loading Wheel (Single Wheel) | Φd mm | 74×93 |
| Size of Loading Wheel (Double Wheel) | Φd mm | 74×70 |
| DIMENSIONS | ||
| Lifting Height | h mm | 115 |
| Max. Fork Height | H mm | 200 |
| Min. Fork Height | H1 mm | 75 |
| Fork Outer Width | W mm | 520 / 550 / 685 |
| Fork Length | L mm | 900 / 1100 / 1150 / 1220 |
| Fork Width | S mm | 160 |
| Steel Thickness (After Painting) | mm | 3 |
| Weight | kg | 61.5 ~ 68.5 |
Note: Fork outer width and length options available upon order. Contact us for custom configurations.
Warranty Information for Sumachay Plus SH25+
Your Sumachay Plus SH25+ Manual Pallet Jack comes with a comprehensive 18-month warranty that begins on the date of purchase, as indicated on your invoice. This warranty covers repairs in the event of a legitimate manufacturing defect or mechanical breakdown under normal operating conditions.
Warranty Coverage Includes:
- Structural frame and welded components
- Hydraulic pump system and cylinders
- Fork assemblies and mechanical linkages
- Wheels and axles (excluding normal wear)
- Handle and control mechanisms
Warranty Exclusions:
This warranty does not cover issues arising from:
- Normal wear and tear on wheels, seals, and moving parts
- Accidental damage, misuse, or negligence
- Overloading beyond the rated 2500 kg capacity
- Use in environments with corrosive chemicals or excessive moisture
- Modifications or repairs performed by unauthorized personnel
- Failure to perform recommended maintenance procedures
Maintenance Recommendations:
To ensure the longevity and optimal performance of your SH25+, we strongly recommend:
- Regular visual inspections before each use
- Periodic lubrication of moving parts and pivot points
- Keeping the unit clean and free from debris
- Proper storage in a dry, protected environment
- Prompt attention to any unusual sounds or performance issues
Warranty Service:
If you experience any issues covered under warranty, please contact our Canadian technical support team. We will assess the situation and provide repair or replacement parts as needed. In most cases, we can ship replacement components quickly to minimize downtime.
For warranty claims, please have your purchase invoice and product serial number ready. Our team is committed to providing prompt, professional service to keep your operations running smoothly.
Contact Information:
Email: info@sumachay.com
Frequently Asked Questions: Sumachay Plus SH25+
Q: What makes the SH25+ different from standard manual pallet jacks?
A: The SH25+ features 100% automated robotic welding for superior structural integrity, reinforced grooved forks with +400 kg increased capacity, and ergonomic design requiring 45% less pulling force. These premium features translate to longer service life, reduced operator fatigue, and lower total cost of ownership.
Q: What is the maximum load capacity of the SH25+?
A: The SH25+ has a rated capacity of 2500 kg (5,500 lbs). The reinforced grooved fork design provides an additional 400 kg static load capacity advantage over standard flat fork designs, ensuring safe handling of heavy industrial loads.
Q: What maintenance does the SH25+ require?
A: Routine maintenance is minimal: perform visual inspections before use, lubricate pivot points and moving parts monthly, keep wheels clean and free from debris, and check hydraulic fluid levels quarterly. The robust construction and quality components significantly reduce maintenance requirements compared to standard units.
Q: Can the fork width and length be customized?
A: Yes! The SH25+ is available with multiple fork configurations. Outer widths: 520mm, 550mm, or 685mm. Fork lengths: 900mm, 1100mm, 1150mm, or 1220mm. Contact our team to specify the configuration that best suits your pallet dimensions and operational requirements.
Q: Is the SH25+ suitable for cold storage environments?
A: Yes, the SH25+ performs reliably in cold storage applications. The robust steel construction, premium seals, and quality hydraulic components are designed to maintain performance in low-temperature environments. However, we recommend keeping the unit in regular use to prevent seal stiffening during extended cold exposure.
Q: What type of wheels come standard with the SH25+?
A: The SH25+ features high-quality wear-resistant wheels: 180×50mm polyurethane steering wheels for smooth maneuverability, and dual load wheels (74×93mm single or 74×70mm double configuration) designed for extended service life and quiet operation across various floor surfaces.
Q: What is included with the warranty?
A: The SH25+ includes a comprehensive 12-month parts warranty covering manufacturing defects in structural components, hydraulic systems, forks, and mechanical assemblies. Our Canadian technical support team provides prompt assistance, and replacement parts ship quickly to minimize operational downtime.
Q: How does the adjustable push rod work?
A: After extended use, if the forks become slightly unbalanced in height, the adjustable push rod allows you to make precise height corrections without disassembly. This feature extends service life and maintains optimal performance, reducing the need for costly repairs or premature replacement.
Request a Quote
A sales representative will contact you shortly.
Sumachay Plus SH25+ 2500 kg Manual Pallet Jack Premium Series, 18-Month Warranty Sumachay Plus Series
This product represents our Plus tier: built for operations that demand higher duty cycles, extended service life, and long-term ownership confidence. Every Plus product includes premium structural components and an 18-month extended warranty.
Higher Duty Cycles
Engineered for frequent, intensive use
Reinforced Construction
Robotic-welded chassis and forks
Reduced Operator Fatigue
45% less pulling force required
18-Month Warranty
Extended coverage standard on Plus
Why This Plus Product Is Different
Sumachay Plus products are built for operations that demand more
| Feature | Sumachay Plus SH25+ 2500 kg Manual Pallet Jack Premium Series, 18-Month Warranty | Standard Equipment |
|---|---|---|
| Warranty Coverage | 18 Months | 6-12 Months |
| Chassis Welding | Robotic Precision | Manual |
| Fork Static Load Rating | +400 kg Above Standard | Standard Rating |
| Pulling Force Required | 45% Reduced | Standard |
| Frame Reinforcement | V-Block + Top Cap | Basic |
| Service Documentation | Full Technical Manuals | Basic |
Built for Heavy-Duty Performance
Every component engineered for durability, efficiency, and reduced operator fatigue in demanding warehouse environments.
Robotic Welding Precision
Chassis welds executed by robotic systems for consistent penetration and structural integrity across every unit.
Reinforced Fork Construction
Forks rated for +400 kg additional static load capacity versus standard models. Built for sustained heavy loads.
45% Reduced Pulling Force
Optimized wheel geometry and bearing design reduces operator effort, improving throughput and reducing fatigue.
Reinforced Top Cap
Heavy-gauge steel top cap resists deformation under repeated impact and high-load conditions.
Adjustable Push Rod
Fork equalization system allows fine-tuning for level load distribution across uneven surfaces.
Enhanced Rocker Arm
Reinforced pivot points and improved lever geometry for smoother pump action and longer service life.
Grooved V-Block Design
V-block reinforcement distributes stress across the frame, reducing flex under maximum load.
Premium Wear Components
Industrial-grade wheels and rollers with higher durometer ratings for extended service intervals.
Debris-Protected Wheels
Large wheel openings allow debris clearance, reducing jams and maintenance in high-traffic environments.
Ideal Applications
Is This Plus Product Right for Your Operation?
This Plus product is ideal for facilities that need maximum capacity and durability for heavy-duty pallet handling, with the confidence of extended warranty coverage. Perfect for:
High-Volume Warehouses: Handle heavy loads efficiently in large distribution centers with demanding throughput requirements.
Trucking & Logistics: Load and unload heavy pallets quickly and safely. Ideal for freight terminals and shipping operations.
Manufacturing: Transport heavy raw materials and finished goods between production lines, storage, and shipping areas with maximum efficiency.
Retail & Wholesale: Handle heavy stock deliveries and backroom inventory moves with superior capacity and reliability.
Key Specifications at a Glance
Extended Warranty — Standard on Plus Products
Sumachay Plus products include an 18-month extended warranty as standard — 50% longer coverage than our regular range. Built for operations that cannot afford downtime.
Return on Investment
- Longer service life compared to standard manual pallet jacks, reducing replacement frequency
- Lower operator fatigue due to 45% reduced starting force, improving daily productivity
- Reinforced forks and chassis minimize structural wear in high-load applications
- Reduced maintenance requirements lower total cost of ownership over time
